HistoCore BIOCUT - Manual Rotary Microtome

149BIO000C1, 14051756235

With Improved Ergonomics, Manual Microtomy Never Felt so Good

Do you desire high-speed AND comfort in your manual microtomy? If so, the HistoCore BIOCUT could be the perfect solution for you. The new generation of microtomes from Leica Biosystems is built upon our 145+ year heritage of market-leading microtome design. With new options such as the personalized coarse feed wheel and 2-in-1 blade holder, it ranks among the most ergonomically-friendly microtomes on the market.

  • Quickly and efficiently select the turn direction most comfortable for you with the Personalized Coarse Feed Wheel.
  • Shorten cleaning time from minutes to seconds with the Antistatic Waste Tray.
  • Switch between high and low-profile blades even faster without changing blade holders by using the 2-in-1 Blade Holder.
Contact us to get a quote. Call +65 6537 6815 to speak with a representative.

For in vitro diagnostic use.

Product Specifications

General

Type: Mechanical
Nominal Supply Voltage: N/A
Nominal Frequency: N/A
Maximum Power Consumption: N/A
Protection Class: N/A
Power Fuses: N/A
Pollution Degree: N/A
Overvoltage Category: N/A
Maximum Heat Emission: N/A
Operating Temperature Range: +18°C to +30°C
Temperature Range During Storage: +5°C to +50°C
Relative Humidity During Operation: 20% to Max. 80% Non-Condensing
Relative Humidity During Storage: 10% to Max. 85% Non-Condensing

Dimensions & Weight

BASIC INSTRUMENT
Width (including handwheel and coarse feed wheel): 477 mm
Depth (including waste tray): 620 mm
Height (without top tray): 295 mm
Weight (without accessories): Approx. 31 kg
CONTROL PANEL
Type: N/A
Width: N/A
Depth: N/A
Height: N/A
Height (in inclined position): N/A
Weight (net): N/A

Microtome Performance Specs

Specimen Feed: approx. 24 mm ±2 mm
Vertical Stroke: 70 mm ±1 mm

Large Standard Clamp: 55 x 50 x 30 mm

Super Cassette Clamp: 68 x 48 x 15 mm
Motorized Sectioning Speeds: N/A
SPECIMEN RETRACTION
In Manual Sectioning Mode: Approx. 40 µm (can be turned off)
In Motorized Sectioning Mode: N/A
SPECIMEN ORIENTATION
Horizontal: ± 8°
Vertical: ± 8°
SECTION THICKNESS SETTINGS
Range: 1 - 60 µm
Setting Values: 1 - 10 µm (in 1 µm increments)

10 - 20 µm (in 2 µm increments)

20 - 60 µm (in 5 µm increments)
TRIMMING SECTION THICKNESS SETTINGS:
Range: 10 µm, 30 µm
Setting Values: N/A

Additional Specifications

Handwheel Balance System:
Handwheel Lock / Brake: 2 Mechanical Locks
Safety Hand Wheel: N/A
Coarse Feed Wheel Turn Direction: User-Selectable - Clockwise or Counter-Clockwise
WASTE TRAY
Type Anti-static
Waste Tray Volume 1400 ml
SELECTABLE CUTTING MODES
Rock Mode:   - manual
Single Mode:
Continuous Mode:
Step Mode:
Program Mode:
BLADE HOLDER
Type: 2-in 1 for high and low profile blades
North-South Movement: ± 24 mm
East-West Movement: N/A
Lateral Displacement Function: via knife holder CE clamping top
SPECIAL FEATURES
Remaining Feed Indicator Visual
Section Counter
Section Thickness Totalizer
Memory Position
Special Spindle for Precise Semi-Thin Sectioning
Expanded Slow Speed Adjustment for Precise Semi-Thin Sectioning
Precise 3D Object Head Stop Position

Product Features

Antistatic Waste Tray (Brush Included)

With the Antistatic Waste Tray, BIOCUT helps you keep your workplace clean, efficient, and debris-free. The tray is made from antistatic material which prevents paraffin waste from sticking to the walls. It provides unmatched efficiency by reducing your cleaning time from minutes to seconds.

Antistatic Waste Tray (Brush Included)

2-in-1 Blade Holder

With the 2-in-1 Blade Holder, you can easily switch between high and low-profile blades without changing blade holders. In addition, compared to our previous manual microtomes, the new modular design of blade holder helps you maintain individual components and efficiently service your equipment over time.

High-or-Low-Profile-Blades-it's-your-Choice

Put (Almost) Anything on Top of your Microtome!

Our new models feature 40% more surface area on top of the microtome (23.5cm W x 27.5cm L, vs. 21.7cm W x 21.2cm L on the RM22xx series) so you can store the tools you need for your job – brushes, blades, wipes, and more.

40% more Surface Area on Microtome Top Compared to older RM22xx Series

Precision-Orientation System

Always get back to a 0-position home on the microtome, regardless of how you (or another tech) have changed the instrument's orientation.

Force Balance System

Minimize the risk of injury to the operator or specimen by an unbalanced object head.

Silent Retraction

If working in a quiet environment, BIOCUT helps you concentrate and is your ideal sectioning partner with little-to-no noise during retraction.

Quick Compare Chart

  • HistoCoreBiocut

  • HistoCoreMULTICUT_1000x700

  • HistoCoreAUTOCUT_1000x700

Product
HistoCoreBiocut

HistoCore BIOCUT

Currently viewing
HistoCoreMULTICUT_1000x700

HistoCore MULTICUT

View Product

HistoCoreAUTOCUT_1000x700

HistoCore AUTOCUT

View Product

Type Mechanical Semi-Motorized Motorized
Precision-Orientation System
Force Balance System
2-in-1 Blade Holder
Specimen Cooling Option with RM CoolClamp
Antistatic Waste Tray
Silent Retraction
Personalized Coarse Feed Wheel
Fast Homing
Memory Position
Electronic Brake

Downloads

Brochure

IFU

DownloadIFU Documents

Certificate

DownloadDoC HistoCore BIOCUT E Size: 331.78 KB, Type: pdf

Configurations

Configuration 1 (149BIO000C1)

  • Manual mechanical rotary microtome
  • Includes Antistatic Section Waste Tray
  • Top Tray
  • Precision orientation with quick clamping system for specimen clamps

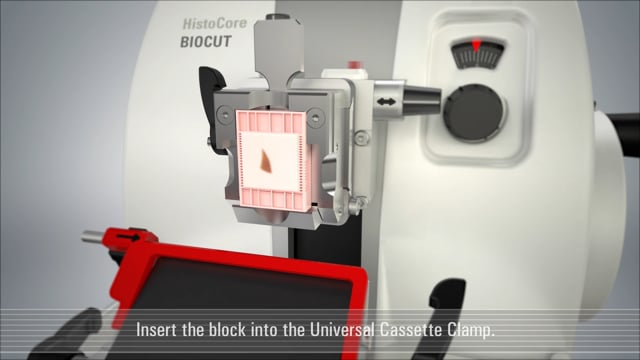

  • Universal cassette clamp
  • Two-in-one blade holder E for high and low-profile blades with lateral displacement function (includes blade holder base)

Basic Instrument (14051756235)

  • Manual mechanical rotary microtome
  • Anti-static waste tray, top tray, without specimen orientation or additional accessories.
  • Completely customizable with a wide selection of accessories

Configuration 3 (149BIO000C3)

  • Manual mechanical rotary microtome
  • Includes Antistatic Section Waste Tray
  • Top Tray
  • Precision orientation with quick clamping system for specimen clamps
  • Universal cassette clamp
  • Knife holder DH for high profile blades with lateral displacement function (includes knife holder base)

Configuration 4 (149BIO000C4)

  • Manual mechanical rotary microtome
  • Includes Antistatic Section Waste Tray
  • Top Tray
  • Precision orientation with quick clamping system for specimen clamps
  • Universal cassette clamp
  • Knife holder DL for low profile blades with lateral displacement function (includes knife holder base)
